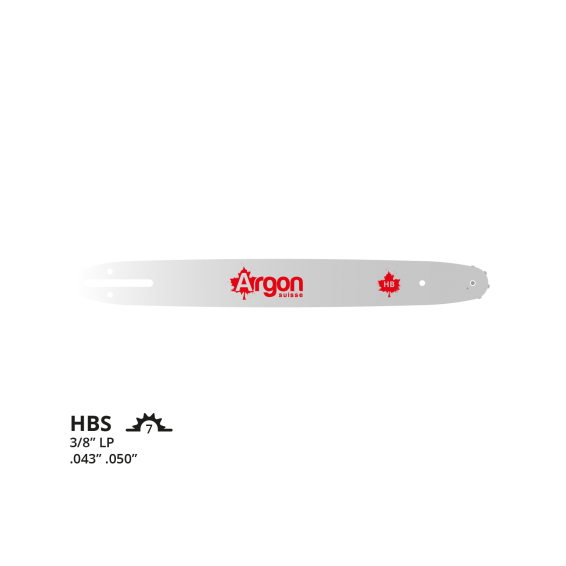

Laminated guide bar 14" (model HBS) 3/8"LP .050" AXD1
Guide Bars
CODE: 14D0-AXD1-HBS-53
000.005.718
Non Genuine Product, Suitable To Replace Original Code
Packaging & Quantity: Carton Sleeve 1 pc
Technical Specification | |
---|---|
Length:
14" - 35cm |

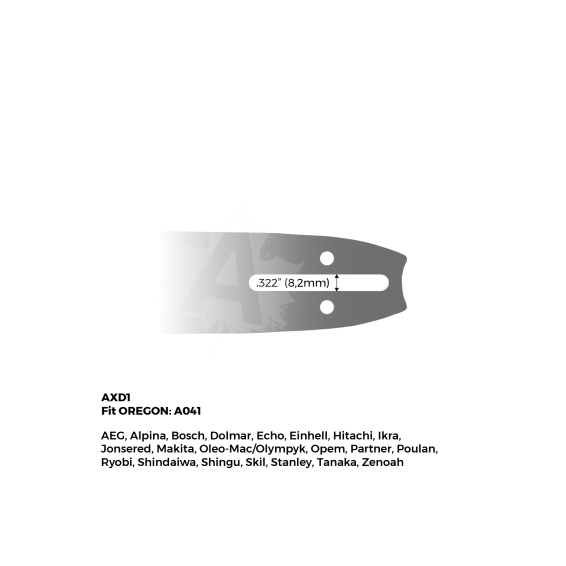

Mount:
AXD1 - A041 |
Pitch:
3/8" Low Profile |

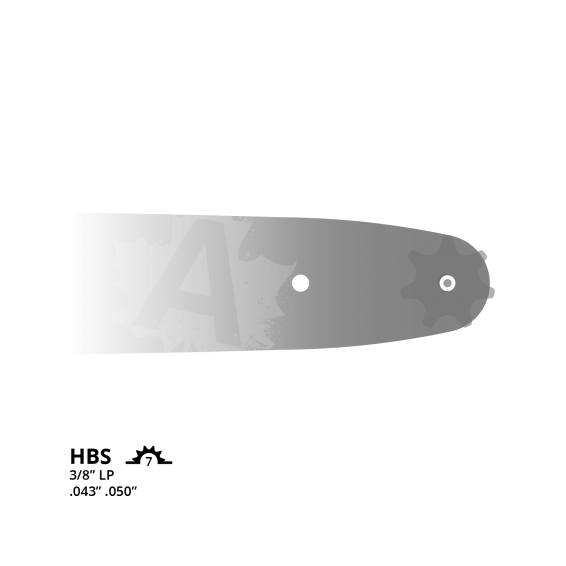

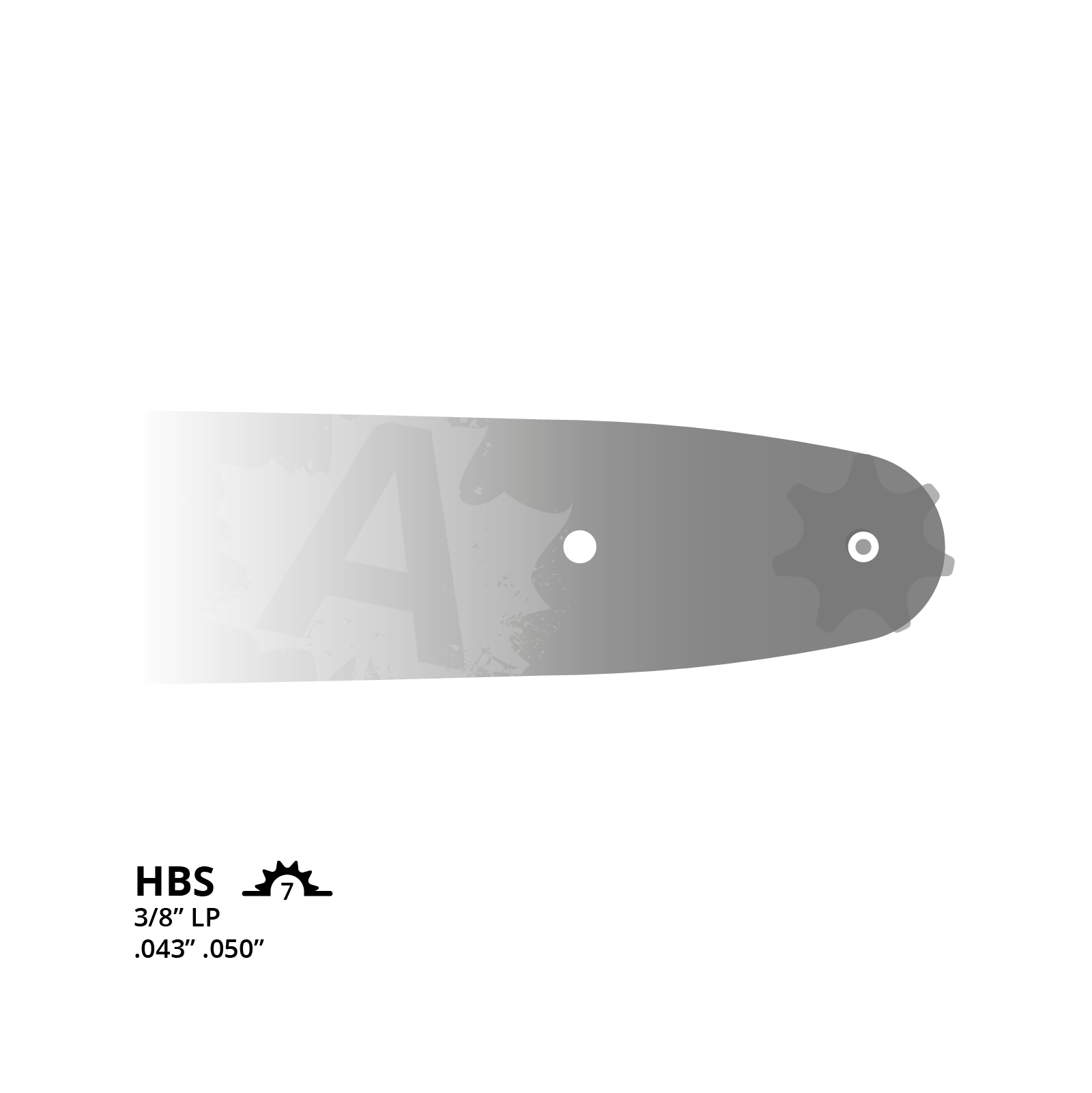

Nose:
1 Rivet - 7 Teeth |
Gauge:
.050" - 1,3mm |
Drive Link Nr.:
53 |
Related products
-
Laminated guide bar 14" (model CSN) 3/8"LP .050" AXI5
CODE: 14D0-AXI5-CSN-52 -
Replaceble nose guide bar 17" (model RNE) 3/8" .058" DXX9
CODE: 17A8-DXX9-RNE-64 -
Laminated guide bar 8" (model HBS) 3/8"LP .043" AXD1
CODE: 8D4-AXD1-HBS-33 -
Replaceble nose guide bar 24" (model RNE) 3/8" .050" DAG6
CODE: 24A0-DAG6-RNE-81 -
MODEL FIT GUIDE
Products | Cutter Style | Ripping | Chain Pitch | Chain Gauge | Safety | Size |
---|---|---|---|---|---|---|
Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
025R - 410DL
|
|
Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
100R - 1640DL
|
|
Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
Bumper Link
|
025R - 410DL
|
|
Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
Bumper Link
|
100R - 1640DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
025R - 410DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
100R - 1640DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
Bumper Link
|
025R - 410DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
Bumper Link
|
100R - 1640DL
|
|
Semi Chisel
|
Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
025R - 410DL
|
|
Semi Chisel
|
Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
100R - 1640DL
|
|
Chisel
|
Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
025R - 410DL
|
|
Chisel
|
Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
100R - 1640DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
No Safety
|
53DL
|
|
Semi Chisel
|
No Ripping
|
3/8" Low Profile
|
.050" - 1,3mm
|
Bumper Link
|
53DL
|
Cutter Style
Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
025R - 410DL
Cutter Style
Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
100R - 1640DL
Cutter Style
Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
Bumper Link
Size
025R - 410DL
Cutter Style
Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
Bumper Link
Size
100R - 1640DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
025R - 410DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
100R - 1640DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
Bumper Link
Size
025R - 410DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
Bumper Link
Size
100R - 1640DL
Cutter Style
Semi Chisel
Ripping
Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
025R - 410DL
Cutter Style
Semi Chisel
Ripping
Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
100R - 1640DL
Cutter Style
Chisel
Ripping
Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
025R - 410DL
Cutter Style
Chisel
Ripping
Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
100R - 1640DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
No Safety
Size
53DL
Cutter Style
Semi Chisel
Ripping
No Ripping
Chain Pitch
3/8" Low Profile
Chain Gauge
.050" - 1,3mm
Safety
Bumper Link
Size
53DL
SAW CHAIN FIT GUIDE
CS2000,
CS271,
CS271 T,
CS280 E,
CS280 EP,
CS2800,
CS285 EVL,
CS290,
CS2900,
CS300,
CS300 EVL,
CS3000,
CS301,
CS302,
CS302 S,
CS303 T,
CS305,
CS3050,
CS310,
CS315,
CS320 EVL,
CS328,
CS330,
CS330 EVL,
CS330 MX4,
CS330 T,
CS340,
CS3400,
CS341,
CS345,
CS3450,
CS346,
CS350 TES,
CS3500,
CS351,
CS352,
CS355 T,
CS360,
CS360 EVL,
CS360 T,
CS361 P,
CS370,
CS370 F,
CS370 T,
CS400,
CS400 F,
CS4400,
E155,
ECS2000,
ECS3000,
PPF225,
PPF2620,
PPF280,
PPT2620,
PPT2620 H,
PPT265,
PPT265 H,
PPT265 S,
PPT266,
PPT266 H,
PPT266 S,
PPT280
